Detail: Row Summing Updater

The Row Summing Updater is a specialized discrete updater that computes posterior quantities by summing over rows of the conditional probability tables (CPTs) consistent with the specified evidence and manipulations. It is intended for simpler or more structured cases where such row-wise calculations are convenient.

It is available when the Updater box is connected to a discrete Instantiated Model or Estimator output and the updater type is set to Row Summing Updater.

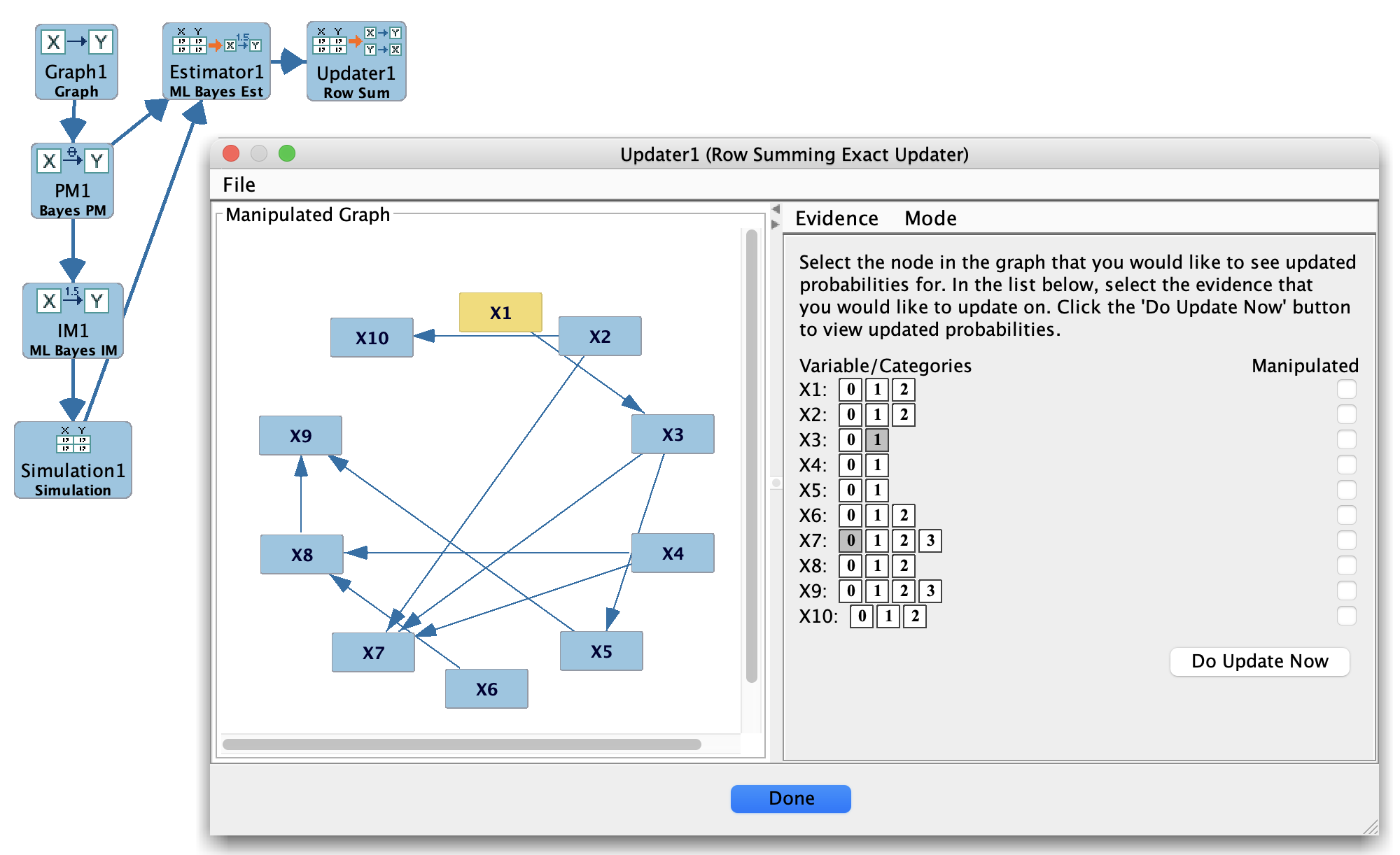

Row Summing Updater

Row Summing Updater

Purpose

  • Provide a conceptually simple, table-based updating mechanism in discrete models.

  • Compute exact or semi-exact posterior probabilities by explicitly summing over CPT rows that match evidence and intervention patterns.

  • Serve as an alternative to the junction-tree and approximate updaters in specific situations.

Inputs and setup

  • Input model: discrete Bayesian model from an Instantiated Model or Estimator.

  • Evidence and manipulations:

    • The user specifies observed values and manipulations for variables, as in other discrete updaters.

No junction tree is built; instead, the updater works more directly with the tabular representation of the model.

How it works (conceptually)

At a high level:

  1. Interpret the discrete Bayes model as a joint distribution factored into CPTs.

  2. For each query variable (Y):

    • Enumerate (or efficiently traverse) combinations of parent configurations / CPT rows consistent with:

      • The specified evidence,

      • The specified manipulations.

    • For each such configuration, accumulate contributions of its joint probability to:

      • The desired event (e.g., (Y = y)),

      • The normalizing constant.

  3. Normalize to obtain posterior probabilities: [ P(Y = y \mid \text{evidence, manipulations}) = \frac{\sum_{\text{consistent rows}} P(Y = y, \text{rest})} {\sum_{\text{consistent rows}} P(\text{rest})}. ]

In practice, the implementation may use factorization tricks to avoid brute-force enumeration, but the conceptual picture is row-based summation over table entries.

Output

  • Posterior probabilities computed by row summation.

  • Displayed similarly to other discrete updaters (probability tables or marginal distributions).

Tips

  • Best suited to:

    • Smaller discrete models, or

    • Structured networks where row-wise calculations are efficient.

  • For general large models, the Junction Tree Updater will often be more scalable; for very large models where exact methods are too slow, the Approximate Updater may be preferable.

  • If you are teaching or debugging, the Row Summing Updater can be useful because it closely mirrors the textbook calculation β€œsum over all configurations consistent with the evidence.”
