Detail: Hybrid CG Estimator

The Hybrid CG Estimator fits a Hybrid Conditional Gaussian (CG) Parametric Model to data where some variables are discrete and others are continuous. In such models, continuous variables are typically Gaussian conditional on the discrete parents, allowing mixtures of discrete and continuous nodes in a single graphical model.

This estimator is available when the Parametric Model connected to the Estimator box is a Hybrid CG PM.

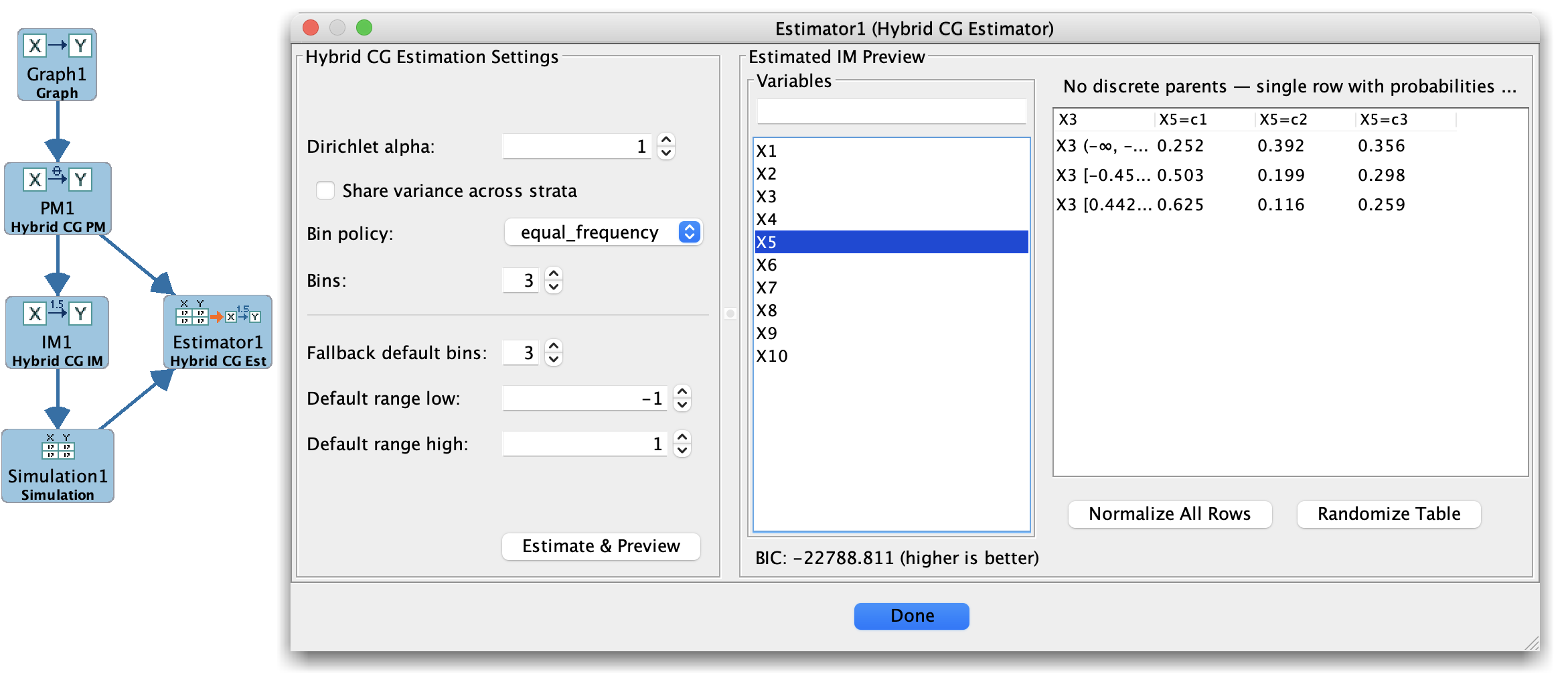

Hybrid CG Estimator

Hybrid CG Estimator

Purpose

  • Estimate parameters in mixed discrete–continuous graphical models, where:

    • Discrete variables have CPTs (like in a Bayes network).

    • Continuous variables have conditional Gaussian distributions, with means/variances depending on the configuration of discrete parents.

  • Provide a fitted model suitable for:

    • Simulation,

    • Prediction,

    • and comparison with alternative CG structures.

Inputs and requirements

  • Parametric Model: A Hybrid CG PM specifying:

    • Which variables are discrete vs. continuous.

    • Graph structure (parents for each node).

  • Data:

    • Mixed data with discrete and continuous variables matching the model.

    • Sufficient samples for each discrete configuration to estimate continuous parameters reasonably.

  • Estimation options (where available), such as:

    • Missing-data handling.

    • Regularization or minimum-variance safeguards for continuous parts.

    • Convergence settings if iteratively optimized.

How it works (conceptually)

Roughly:

  1. For discrete variables, estimate CPTs similarly to Bayes estimation (ML or smoothed variants, depending on the implementation).

  2. For continuous variables:

    • For each configuration of discrete parents (and possibly continuous parents), fit a Gaussian regression:

      • Means become linear functions of continuous parents.

      • Variances (and possibly covariances) are estimated for each configuration.

  3. Combine these into a coherent hybrid CG parameterization.

Output

  • A fitted Hybrid CG model specifying:

    • Discrete CPTs.

    • Conditional Gaussian parameters for continuous variables:

      • Regression coefficients,

      • Conditional variances,

      • (Where applicable) covariance structure.

  • May also provide:

    • Log-likelihood,

    • Information criteria such as BIC.

The fitted model can be used as an Instantiated Model (Hybrid CG).

Tips and common issues

  • Hybrid CG estimation can be data-hungry:

    • If discrete parents have many states, some configurations may be under- represented, leading to unstable estimates.

  • Verify that the coding of discrete vs. continuous variables in the data matches the Hybrid CG PM.

  • If estimation is unstable:

    • Consider simplifying the model (reducing parent sets).

    • Merge categories for discrete variables where appropriate.

    • Increase sample size if possible.
